HEXAGON CAP -SERIE 2

MATERIAL
LDPE
COLOR
BLACK, WHITE
NOTE
Hexagon caps useful either for covering a single bolt or even with double bolts

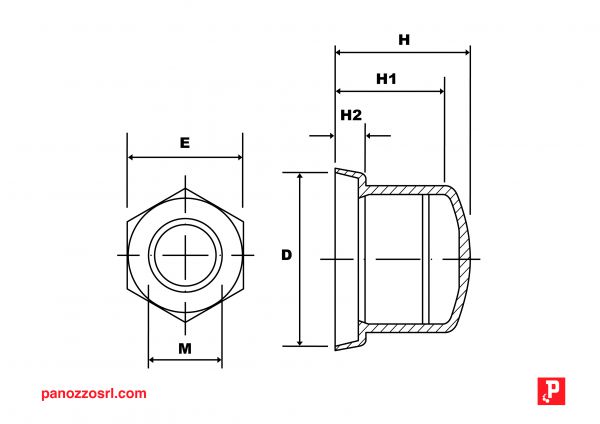

Technical design
SIZES
CODE COLOR D H H1 H2 THREAD HEXAGON
11155 TPDBR-M6-12N NERO 13,2 12 9 2 M6 10
11156 TPDBR-M6-12B BIANCO 13,2 12 9 2 M6 10
11157 TPDBR-M6-17N NERO 13,2 17 13 2 M6 10
11158 TPDBR-M6-17B BIANCO 13,2 17 13 2 M6 10
11159 TPDBR-M8-15N NERO 17,9 15 12 2,3 M8 13
11160 TPDBR-M8-15B BIANCO 17,9 15 12 2,3 M8 13
11161 TPDBR-M8-22N NERO 17,9 22 19 2,3 M8 13
11162 TPDBR-M8-22B BIANCO 17,9 22 19 2,3 M8 13
11163 TPDBR-M10-18N NERO 22 18 14 2,7 M10 17
11164 TPDBR-M10-18B BIANCO 22 18 14 2,7 M10 17
11165 TPDBR-M10-26N NERO 22 26 22 2,7 M10 17
11166 TPDBR-M10-26B BIANCO 22 26 22 2,7 M10 17
11167 TPDBR-M12-21N NERO 25,5 21 17 3,5 M12 19
11168 TPDBR-M12-21B BIANCO 25,5 21 17 3,5 M12 19
11169 TPDBR-M12-31N NERO 25,5 31 27 3,5 M12 19
11170 TPDBR-M12-31B BIANCO 25,5 31 27 3,5 M12 19
11171 TPDBR-M16-27N NERO 31,5 27 23 4,4 M16 24
11172 TPDBR-M16-27B BIANCO 31,5 27 23 4,4 M16 24
11173 TPDBR-M16-40N NERO 31,5 40 36 4,4 M16 24
154815 TPDBR-M16-40B BIANCO 31,5 40 36 4,4 M16 24
11174 TPDBR-M20-32N NERO 38,7 32 29 5 M20 30
11175 TPDBR-M20-32B BIANCO 38,7 32 29 5 M20 30
11176 TPDBR-M20-48N NERO 38,7 48 45 5 M20 30
11177 TPDBR-M20-48B BIANCO 38,7 48 45 5 M20 30
HEXAGON CAP -SERIE 2

Where to buy hexagon cap -serie 2?

If you are looking for Plugs or if you are looking for a particular type of Plug model then you are on the right site because Panozzo has an almost infinite series of all types of fasteners and fixings to satisfy all users.

Panozzo does not only handle plastic Plugs, but can also manufacture articles in plastic for customer design for small lots.

In a logic of technical support and economic ethics, we evaluate and recommend the type of Plug in plastic more suitable for the customer.

Where to find plastic Plugs? Simple! In the fasteners and fixings of our site www.panozzosrl.com you can find what you are looking for.

The Panozzo Plugs can be used in the commercial vehicle industry and in the design of industrial bodywork, for which the easy of installation is essential.

The Panozzo goal is to help companies make purchases as economically as possible. For this reason, we are not only seen as a vendor but as one who proposes individual solutions to solve problems related to fasteners and fixings. A big potential to increase efficiency and productivity is the organization of the purchase of Plugs in plastic because of low commodity value but having a huge impact on management costs in relation to total purchases of Materials needed, especially with frequent orders.

For Panozzo quality is everything. Browse in the category fasteners and fixings to find out all of our products we provide.

Plugs are found in cars, shelves, furniture, machinery, home fixtures, appliances, computers, and virtually anywhere you find a plastic Plug.

Very often the closure of holes on sheet metal is needed. Finding the solution is very simple for Panozzo because we have a wide variety of shapes and sizes of plastic Plugs.

It is very important to to close any holes on machinery or other protection protection from dirt, dust, and moisture. In this case you always try to find an economical solution with a plastic Plug quick to insert and remove.

Finding the plastic Plug hole cover of the right size for the closure of a hole in sheet metal is very easy. Just measure the diameter of the hole to to close, go to the Panozzo site in the closure holes and click on the image of the selected Plug. The header of the columns in the dimensional table corresponds to the letters found on the technical drawing. You just have to choose the plastic Plug code.

If you need a Plug hole cover for furniture or for window frames, on our site www.panozzosrl.com, you can find various aesthetic Plugs that make your case, in the closure holes section.

Very often the same plastic Plug can be used for different purposes such as, for example, for or circular molded cases or for poles of protection for pipes.

The use of Plugs of protection against polluting, dirty or moisture agents during shipment or storage is very important because it avoids damage to the product and therefore costs of maintenance. In fasteners and fixings you can request a sample of the Plug you want to test.

When speaking about of protection for threaded pipes it can mean the inside or male. This is not a problem because Panozzo has both Plugs male and Plugs female.

to close molded cases, standard black Plugs finned in plastic are always available in our warehouse and ready for shipment. The range includes plastic Plugs for tubolar circular, rectangular and square. The dimensions range from 10mm to over 100mm.

The company has a wide range of thread Plugs for protection threaded. Our plastic Plugs can be used to protect threads metric from M8 to M52, 1/8 "to 3" GAS or threads (threads) UNF 5/16 " 2.1 / 2 ".

The Panozzo Plugs are made of different materials depending on the use. For example, for varnishing you can use a silicone or Epd or polyethylene Plug. Measurements range from 0.5 mm to over 100 mm

Have you ever thought how much time is lost in the production of a Plug in solder iron on tubolar? Using of plastic finned plastic is the fastest, easiest, and most economical solution.

plastic Plugs are considered a poor and superfluous product. Very often we do not realize how a protection Plug or protection threads or more simply closure holes can save you time and money because of damage caused by dust, dirt or liquids.

How to request fasteners and fixings?

To request fasteners and fixings, click on the Plug image of your interest. You can select one or more Plugs and, after finishing the selection, click on the link to check the selections and submit the request. We remind you that if you are already a customer of Panozzo or have already requested samples, you can access the ARENA CUSTOMERS, thus avoiding having to enter all your personal data.

How to apply for ahexagon cap -serie 2?

If you have to apply for a quote click on the hexagon cap -serie 2 and then on the code that interests you. Click on the icon to the left of the code: Plug is inserted into the cart. Click on the display to display the shopping cart, indicate the amount of Plugs required and complete all the data on the Master Card if you are not already a customer, otherwise enter user and password.
If you have to add another Plug of the category fasteners and fixings or else, click the green arrow back to the products.

Want to download the PDF catalog of the fasteners and fixings family?

You can download the updated PDF catalog of plastic Plugs of your interest from the main page of fasteners and fixings or the CATALOG CATALOG PDF section of our site www.panozzosrl.com. The catalog shows the image, design and material of production and the size of the plastic Plug that you find on the site.
