NYLON BLANKING PLUG

MATERIAL
NYLON 6.6
COLOR
BLACK/WHITE

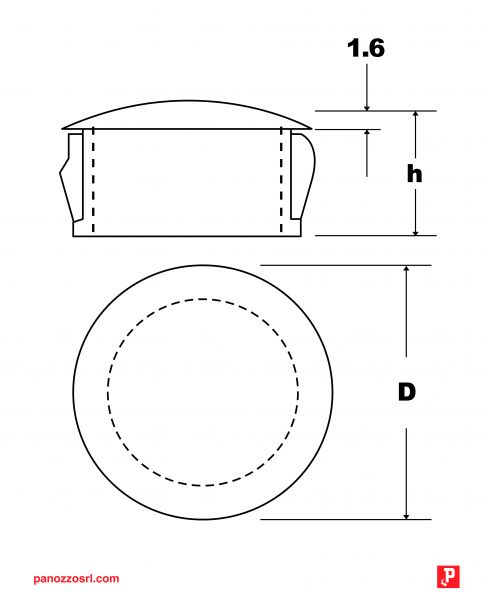

Technical design
SIZES
CODE D H HOLE DIAMETER MAX THICKNESS SHEET
4429 TFLN4.8 6,4 5,9 4,8 1,6
4430 TFLN6.4 8 8 6,4 1,6
4431 TFLN8 9,5 8 8 1,6
4432 TFLN9.5 12 10 9,5 3,2
4433 TFLN11 13,5 10,3 11,1 3,2
4434 TFLN12.7 14,6 10,3 12,7 3,2
4435 TFLN12.7B 14,7 14,3 12,7 6,4
4436 TFLN14.3 16,7 10,3 14,3 3,2
4437 TFLN15.9 18,2 10,3 15,9 3,2
4438 TFLN15.9B 18,2 11,5 15,9 6,4
4439 TFLN16 18,5 10,3 16 2,5
4440 TFLN17.5 20 10,3 17,5 3,2
4441 TFLN19 23,2 10,3 19 3,2
7212 TFLN19.1 23,4 11,5 19,1 6,4
4443 TFLN20 22,6 11,5 20 2,5
4444 TFLN20.6 22,6 10,3 20,6 3,2
4445 TFLN22.2 25,8 11,5 22,2 3,2
4446 TFLN22.2B 25,8 14,3 22,2 6,4
4447 TFLN25 29,8 11,5 25 2,5
4448 TFLN25.4 30,6 11,5 25,4 3,2
4449 TFLN25.4B 30,6 14,3 25,4 6,4
4450 TFLN27.8 31 11,5 27,8 3,2
4451 TFLN27.8B 30,9 14,3 27,8 6,4
4452 TFLN30 33,3 11,5 30 3,2
4454 TFLN31.7 34,9 14,3 31,7 6,4
4455 TFLN32 34,9 11,5 32 3,2
4457 TFLN34.9 38,1 10,3 34,9 6,4
4459 TFLN38 42,7 11,5 38 3,2
4460 TFLN38.1 42,4 14,3 38,1 6,4
4461 TFLN44.5 48,4 11,5 44,5 6,4
4462 TFLN45 48,4 11,5 45 3,2
4464 TFLN51 55 11,5 51 3,2
NYLON BLANKING PLUG

Where to buy nylon blanking plug?

If you are looking for Plugs or if you are looking for a particular type of Plug model then you are on the right site because Panozzo has an almost infinite series of all types of hole and threaded protection to satisfy all users.

The ability to quickly manage the supply of Plugs in plastic, thanks to a well-stocked warehouse and continuous technological innovation for customer order management, makes Panozzo a point reference for hole and threaded protection

Strong point is the website www.panozzosrl.com, which is structured according to the use of products such as nylon blanking plug and images Plugs in plastic well in evidence.

The site www.panozzosrl.com allows the customer and/or potential customer to find very easily and quickly the plastic Plug that he needs.

Panozzo has a warehouse of over 700 sqm. which counts more than 5,000 articles of plastic printed in various materials (pvc, nylon 6.6, epdm, silicone, etc.)

In a logic of technical support and economic ethics, we evaluate and recommend the type of Plug in plastic more suitable for the customer.

Where to find plastic Plugs? Simple! In the hole and threaded protection of our site www.panozzosrl.com you can find what you are looking for.

The Panozzo Plugs can be used in the commercial vehicle industry and in the design of industrial bodywork, for which the easy of installation is essential.

Our flexible service proposes, according to the customer's needs, the organization, consulting or full management (order / purchase) of hole and threaded protection.

With our extensive expertise in consulting, design and production of plastic nylon blanking plug pieces, our offer of hole and threaded protection embraces various industry applications.

Plugs are found in cars, shelves, furniture, machinery, home fixtures, appliances, computers, and virtually anywhere you find a plastic Plug.

Very often the closure of holes on sheet metal is needed. Finding the solution is very simple for Panozzo because we have a wide variety of shapes and sizes of plastic Plugs.

It is very important to to close any holes on machinery or other protection protection from dirt, dust, and moisture. In this case you always try to find an economical solution with a plastic Plug quick to insert and remove.

Finding the plastic Plug hole cover of the right size for the closure of a hole in sheet metal is very easy. Just measure the diameter of the hole to to close, go to the Panozzo site in the closure holes and click on the image of the selected Plug. The header of the columns in the dimensional table corresponds to the letters found on the technical drawing. You just have to choose the plastic Plug code.

The type of Plug to use depends on the purpose, and for this reason Panozzo proposes both plastic Plugs with high aesthetic value and plastic Plugs economical and fast to apply.

If you need a Plug hole cover for furniture or for window frames, on our site www.panozzosrl.com, you can find various aesthetic Plugs that make your case, in the closure holes section.

When speaking about of protection for threaded pipes it can mean the inside or male. This is not a problem because Panozzo has both Plugs male and Plugs female.

to close molded cases, standard black Plugs finned in plastic are always available in our warehouse and ready for shipment. The range includes plastic Plugs for tubolar circular, rectangular and square. The dimensions range from 10mm to over 100mm.

plastic Plugs are considered a poor and superfluous product. Very often we do not realize how a protection Plug or protection threads or more simply closure holes can save you time and money because of damage caused by dust, dirt or liquids.

How to request hole and threaded protection?

To request hole and threaded protection, click on the Plug image of your interest. You can select one or more Plugs and, after finishing the selection, click on the link to check the selections and submit the request. We remind you that if you are already a customer of Panozzo or have already requested samples, you can access the ARENA CUSTOMERS, thus avoiding having to enter all your personal data.

How to apply for anylon blanking plug?

If you have to apply for a quote click on the nylon blanking plug and then on the code that interests you. Click on the icon to the left of the code: Plug is inserted into the cart. Click on the display to display the shopping cart, indicate the amount of Plugs required and complete all the data on the Master Card if you are not already a customer, otherwise enter user and password.
If you have to add another Plug of the category hole and threaded protection or else, click the green arrow back to the products.

Want to download the PDF catalog of the hole and threaded protection family?

You can download the updated PDF catalog of plastic Plugs of your interest from the main page of hole and threaded protection or the CATALOG CATALOG PDF section of our site www.panozzosrl.com. The catalog shows the image, design and material of production and the size of the plastic Plug that you find on the site.
