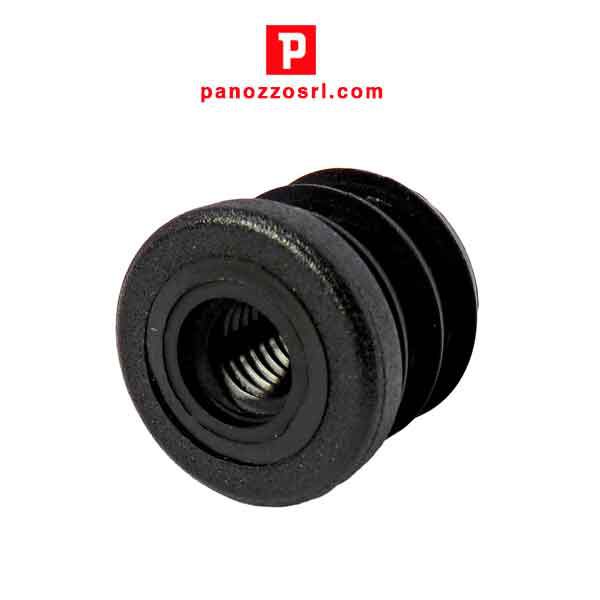

THREADED ROUND INSERT

MATERIAL
POLYTHENE (LDPE)
COLOR
BLACK

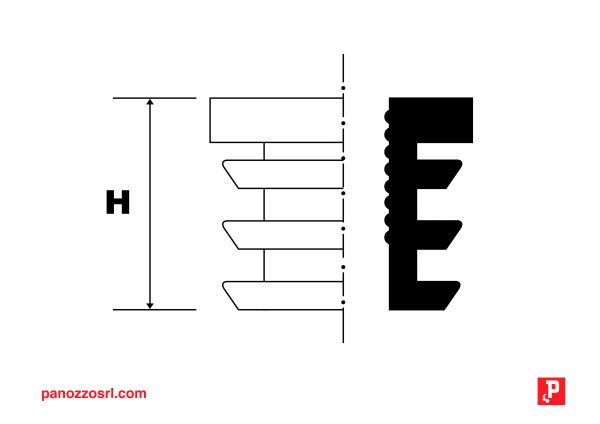

Technical design
SIZES
CODE D H THREAD MAX LOADED MIN. TUBE THICKNESS MAX. TUBE THICKNESS
3077 ILTF22M8 22 21.5 M8 300 Kg. 1.5 2
3078 ILTF25M8 25 21.5 M8 300 Kg. 1.5 2
3079 ILTF28M8 28 21.5 M8 300 Kg. 1.5 2
3080 ILTF30M8 30 21.5 M8 300 Kg. 1.5 2
3081 ILTF32M8 32 29 M8 300 Kg. 1.5 2
3082 ILTF35M8 35 29 M8 300 Kg. 1.5 2
3083 ILTF38M8 38 29 M8 300 Kg. 1.5 2
3084 ILTF40M8 40 29 M8 300 Kg. 1.5 2
3085 ILTF42M8 42 29 M8 300 Kg. 1.5 2
3086 ILTF22M10 22 21.5 M10 300 Kg. 1.5 2
3087 ILTF25M10 25 21.5 M10 300 Kg. 1.5 2
3088 ILTF28M10 28 21.5 M10 300 Kg. 1.5 2
3089 ILTF30M10 30 21.5 M10 300 Kg. 1.5 2
3090 ILTF32M10 32 29 M10 300 Kg. 1.5 2
3091 ILTF35M10 35 29 M10 300 Kg. 1.5 2
3092 ILTF38M10 38 29 M10 300 Kg. 1.5 2
3093 ILTF40M10 40 29 M10 300 Kg. 1.5 2
3094 ILTF42M10 42 29 M10 300 Kg. 1.5 2
3095 ILTF25M12 25 21.5 M12 300 Kg. 1.5 2
3096 ILTF28M12 28 21.5 M12 300 Kg. 1.5 2
3097 ILTF30M12 30 21.5 M12 300 Kg. 1.5 2
3098 ILTF32M12 32 29 M12 300 Kg. 1.5 2
3099 ILTF35M12 35 29 M12 300 Kg. 1.5 2
3100 ILTF38M12 38 29 M12 300 Kg. 1.5 2
3101 ILTF40M12 40 29 M12 300 Kg. 1.5 2
3102 ILTF42M12 42 29 M12 300 Kg. 1.5 2
THREADED ROUND INSERT

Where to buy threaded round insert?

If you are looking for Plugs or if you are looking for a particular type of Plug model then you are on the right site because Panozzo has an almost infinite series of all types of pipes and furniture fittings to satisfy all users.

The ability to quickly manage the supply of Plugs in plastic, thanks to a well-stocked warehouse and continuous technological innovation for customer order management, makes Panozzo a point reference for pipes and furniture fittings

The site www.panozzosrl.com allows the customer and/or potential customer to find very easily and quickly the plastic Plug that he needs.

In a logic of technical support and economic ethics, we evaluate and recommend the type of Plug in plastic more suitable for the customer.

Where to find plastic Plugs? Simple! In the pipes and furniture fittings of our site www.panozzosrl.com you can find what you are looking for.

The Panozzo Plugs can be used in the commercial vehicle industry and in the design of industrial bodywork, for which the easy of installation is essential.

Our flexible service proposes, according to the customer's needs, the organization, consulting or full management (order / purchase) of pipes and furniture fittings.

The plastic Plugs found in the catalog are available in our warehouse and will be shipped as soon as possible, because it is essential for us that every customer receives the plastic Plug to do their job as soon as possible.

For Panozzo quality is everything. Browse in the category pipes and furniture fittings to find out all of our products we provide.

From Panozzo you can find plastic Plugs for road signs and photovoltaic signage and for the automotive sector. Panozzo has always been the reference partner for the development of advanced pipes and furniture fittings solutions.

Very often the closure of holes on sheet metal is needed. Finding the solution is very simple for Panozzo because we have a wide variety of shapes and sizes of plastic Plugs.

It is very important to to close any holes on machinery or other protection protection from dirt, dust, and moisture. In this case you always try to find an economical solution with a plastic Plug quick to insert and remove.

With hole closure Plugs is possible to close any type of holes on sheet metal, on furniture, on light points, on the wall and others manufactured goods.

Finding the plastic Plug hole cover of the right size for the closure of a hole in sheet metal is very easy. Just measure the diameter of the hole to to close, go to the Panozzo site in the closure holes and click on the image of the selected Plug. The header of the columns in the dimensional table corresponds to the letters found on the technical drawing. You just have to choose the plastic Plug code.

The type of Plug to use depends on the purpose, and for this reason Panozzo proposes both plastic Plugs with high aesthetic value and plastic Plugs economical and fast to apply.

If you need a Plug hole cover for furniture or for window frames, on our site www.panozzosrl.com, you can find various aesthetic Plugs that make your case, in the closure holes section.

When speaking about of protection for threaded pipes it can mean the inside or male. This is not a problem because Panozzo has both Plugs male and Plugs female.

The company has a wide range of thread Plugs for protection threaded. Our plastic Plugs can be used to protect threads metric from M8 to M52, 1/8 "to 3" GAS or threads (threads) UNF 5/16 " 2.1 / 2 ".

Have you ever thought how much time is lost in the production of a Plug in solder iron on tubolar? Using of plastic finned plastic is the fastest, easiest, and most economical solution.

Knowing that it is not always easy to choose the Plug suitable for its purpose we decided to help our customers by sending free samples on request. To ask for them, you just have to go to www.panozzosrl.com. We will send the samples by mail or with your courier to the address you indicate.

How to request pipes and furniture fittings?

To request pipes and furniture fittings, click on the Plug image of your interest. You can select one or more Plugs and, after finishing the selection, click on the link to check the selections and submit the request. We remind you that if you are already a customer of Panozzo or have already requested samples, you can access the ARENA CUSTOMERS, thus avoiding having to enter all your personal data.

How to apply for athreaded round insert?

If you have to apply for a quote click on the threaded round insert and then on the code that interests you. Click on the icon to the left of the code: Plug is inserted into the cart. Click on the display to display the shopping cart, indicate the amount of Plugs required and complete all the data on the Master Card if you are not already a customer, otherwise enter user and password.
If you have to add another Plug of the category pipes and furniture fittings or else, click the green arrow back to the products.

Want to download the PDF catalog of the pipes and furniture fittings family?

You can download the updated PDF catalog of plastic Plugs of your interest from the main page of pipes and furniture fittings or the CATALOG CATALOG PDF section of our site www.panozzosrl.com. The catalog shows the image, design and material of production and the size of the plastic Plug that you find on the site.
