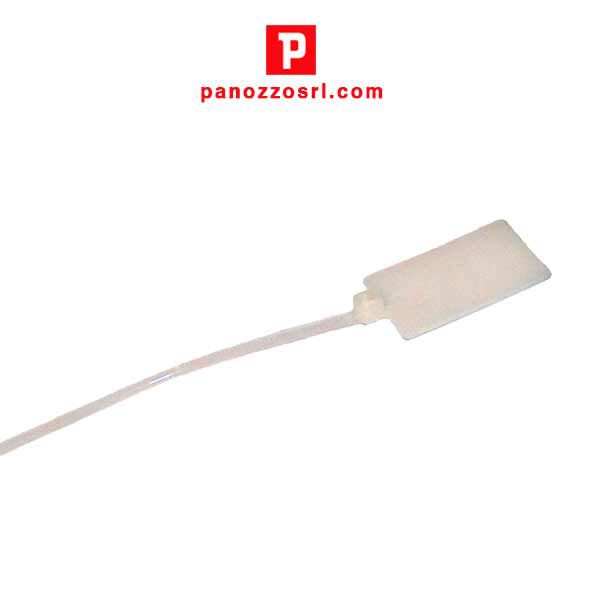

PLASTIC CABLE TIES - WITH MARKER LABEL

MATERIAL
NYLON 6.6
COLOR
NATURAL
Technical design
SIZES
CODE L L1 MAX DIAMETER PLATE DIMENSIONS MAX (Lbs/Kg) TYPE
151725 FIND100X2,5-25,4X8-1 100 2,5 18 25,4X8 18/8,1 1
151727 FIND110X2,5-20,4X9,1-2 110 2,5 18 20,4X9,1 18/8,1 2
151729 FIND190X4,8-13X28-5 190 4,8 46 13X28 50/22,2 5
151731 FIND200X2,5-25,4X8-1 200 2,5 50 25,4X8 18/8,1 1
151733 FIND210X2,5-20,4X9,1-2 210 2,5 50 20,4X9,1 18/8,1 2
151735 FIND220X4,8-13X28-5 220 4,8 54 13X28 50/22,2 5
151811 FIND220X4,8-13X55-5 220 4,8 54 13X55 50/22,2 5
151737 FIND270X4,8-13X28-5 270 4,8 65 13X28 50/22,2 5
151739 FIND300X4,8-13X28-5 300 4,8 76 13X28 50/22,2 5
151813 FIND300X4,8-13X55-5 300 4,8 76 13X55 50/22,2 5
151741 FIND370X4,8-13X28-5 370 4,8 102 13X28 50/22,2 5
