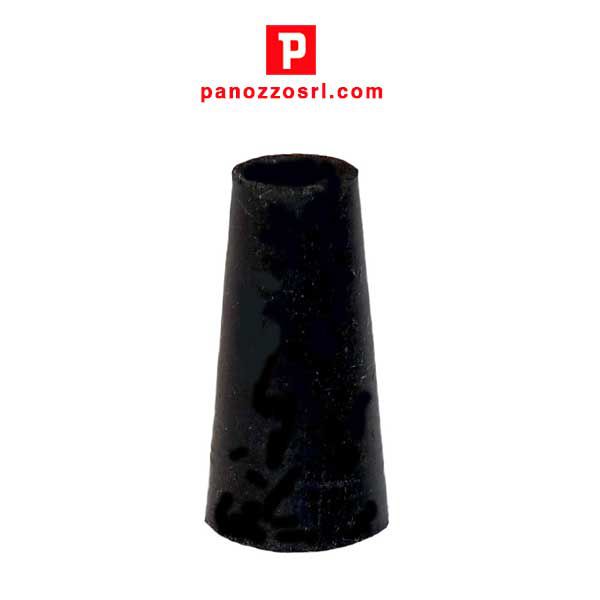

MEDIUM TEMPERATURE TAPERED PLUG

MATERIAL
EPDM
COLOR
BLACK

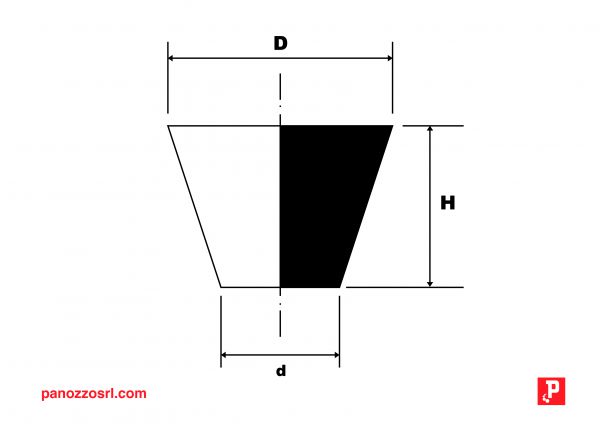

Technical design
SIZES
CODE D D1 H THREAD GAS UNF HOLE RANGE
1382 TRE1,6X15,9 1,6 0,4 15,9 - - 0,4 - 1,6
1383 TRE2X19,1 2 0,5 19,1 M2 - - 0,5 - 2
1384 TRE3,2X15,9 3,2 0,8 15,9 M2 - - 0,8 - 3,2
1385 TRE3,2X15,9-1,6 3,2 1,6 15,9 M3 - - 1,6 - 3,2
1386 TRE4,8X15,9 4,8 1,6 15,9 M3 - M4 - - 1,6 - 4,8
1387 TRE4,8X19,1 4,8 1,6 19,1 M3 - M4 - - 1,6 - 4,8
1388 TRE5,5X38,1 5,5 1,2 38,1 M3 - M4 - M5 - - 1,2 - 5,5
1389 TRE6,4X19,1 6,4 3,2 19,1 M5 - M6 - 1/4" 3,2 - 6,4
1390 TRE6,4X25,4 6,4 3,2 25,4 M5 - M6 - 1/4" 3,2 - 6,4
1391 TRE8,7X15,9 8,7 4,8 15,9 M7 - M8 1/16" 5/8" 4,8 - 8,7
1392 TRE8,7X25,4 8,7 4,8 25,4 M7 - M8 1/16" 5/8" 4,8 - 8,7
1393 TRE9,5X12,7 9,5 6,4 12,7 M10 1/8" 3/8" 6,4 - 9,5
1394 TRE9,5X19,1 9,5 6,4 19,1 M10 1/8" 3/8" 6,4 - 9,5
1395 TRE11,1X17,5 11,1 8,7 17,5 M12 - 7/16" 8,7 - 11,1
1396 TRE11,1X25,4 11,1 6,4 25,4 M10 - M12 1/8" 3/8" 6,4 - 11,1
1397 TRE11,9X20,6 11,9 8,7 20,6 M12 - 7/16" 8,7 - 11,9
1399 TRE14,3X25,4 14,3 7,9 25,4 M10 - M12 - M14 1/4" 7/16", 1/2", 9/16" 7,9 - 14,3
1400 TRE15,1X25,4 15,1 10,3 25,4 M14 - M16 - 1/2", 9/16" 10,3 - 15,1
1401 TRE15,9X22,2 15,9 11,1 22,2 M14 - M16 3/8" 9/16", 5/8" 11,1 - 15,9
1402 TRE16,7X25,4 16,7 12,7 25,4 M16 3/8" 5/8" 12,7 - 16,7
1403 TRE17,5X25,4 17,5 11,1 25,4 M14 - M16 - M18 3/8" 5/8" 11,1 - 17,5
1404 TRE19,1X14,3 19,1 14,3 14,3 M18 - M20 - 3/4" 14,3 - 19,1
1405 TRE19,1X25,4 19,1 14,3 25,4 M18 - M20 - 3/4" 14,3 - 19,1
1406 TRE19,8X25,4 19,8 15,9 25,4 M20 1/2" 3/4" 15,9 - 19,8
1407 TRE20,3X15,9 20,3 15,9 15,9 M20 - M22 1/2" 3/4" 15,9 - 20,3
1408 TRE23,5X19,1 23,5 19,1 19,1 M22 - M24 - 7/8" 19,1 - 23,5
1409 TRE23,8X25,4 23,8 18,3 25,4 M22 - M24 - 7/8" 18,3 - 23,8
1410 TRE25,4X25,4 25,4 19,8 25,4 M24 - M27 3/4" 1" 19,8 - 25,4
1411 TRE27X25,4 27 23 25,4 M27 - - 23 - 27
1412 TRE27,9X25,4 27,9 23,8 25,4 M30 - 1.1/8" 23,8 - 27,9
1413 TRE31,8X25,4 31,8 26,2 25,4 M33 - 1.1/4" 26,2 - 31,8
1414 TRE33,4X25,4 33,4 27 25,4 M33 1" 1.1/4", 1.3/8" 27 - 33,4
1415 TRE36,5X25,4 36,5 30,2 25,4 M36 - 1.3/8" 30,2 - 36,5
1416 TRE38,9X25,4 38,9 31,8 25,4 M39 - 1.1/2" 31,8 - 38,9
1417 TRE41,3X25,4 41,3 33,3 25,4 M39 - M42 1.1/4" 1.1/2" 33,3 - 41,3
1418 TRE42,9X25,4 42,9 35,7 25,4 M42 1.1/4" - 35,7 - 42,9
1419 TRE44,5X25,4 44,5 37,3 25,4 M48 - - 37,3 - 44,5
1420 TRE46X25,4 46 38,1 25,4 M48 1.1/2" - 38,1 - 46
1421 TRE50X25,4 50 41,3 25,4 1.1/2" - 41,3 - 50
1422 TRE52,4X25,4 52,4 44,5 25,4 M56 - - 44,5 - 52,4
1423 TRE56X25,4 56 47,6 25,4 M56 - - 47,6 - 56
1424 TRE62,7X25,4 62,7 50 25,4 M64 2" - 50 - 62,7
1425 TRE63,5X25,4 63,5 54 25,4 M64 2" - 54 - 63,5
1426 TRE68,3X25,4 68,3 57,9 25,4 - - 57,9 - 68,3
1427 TRE75X34,9 75 61,9 34,9 2.1/2" - 61,9 - 75
1428 TRE88,9X38,1 88,9 76,2 38,1 3" - 76,2 - 88,9
1429 TRE101,6X38,1 101,6 82,6 38,1 - - 82,6 - 101,6
1430 TRE127X50,8 127 88,9 50,8 4" - 88,9 - 127
MEDIUM TEMPERATURE TAPERED PLUG

Where to buy medium temperature tapered plug?

If you are looking for Plugs or if you are looking for a particular type of Plug model then you are on the right site because Panozzo has an almost infinite series of all types of masking caps to satisfy all users.

The ability to quickly manage the supply of Plugs in plastic, thanks to a well-stocked warehouse and continuous technological innovation for customer order management, makes Panozzo a point reference for masking caps

Strong point is the website www.panozzosrl.com, which is structured according to the use of products such as medium temperature tapered plug and images Plugs in plastic well in evidence.

Panozzo has a warehouse of over 700 sqm. which counts more than 5,000 articles of plastic printed in various materials (pvc, epdm, epdm, silicone, etc.)

In a logic of technical support and economic ethics, we evaluate and recommend the type of Plug in plastic more suitable for the customer.

Where to find plastic Plugs? Simple! In the masking caps of our site www.panozzosrl.com you can find what you are looking for.

The Panozzo Plugs can be used in the commercial vehicle industry and in the design of industrial bodywork, for which the easy of installation is essential.

The Panozzo goal is to help companies make purchases as economically as possible. For this reason, we are not only seen as a vendor but as one who proposes individual solutions to solve problems related to masking caps. A big potential to increase efficiency and productivity is the organization of the purchase of Plugs in plastic because of low commodity value but having a huge impact on management costs in relation to total purchases of Materials needed, especially with frequent orders.

Our flexible service proposes, according to the customer's needs, the organization, consulting or full management (order / purchase) of masking caps.

With our extensive expertise in consulting, design and production of plastic medium temperature tapered plug pieces, our offer of masking caps embraces various industry applications.

Plugs are found in cars, shelves, furniture, machinery, home fixtures, appliances, computers, and virtually anywhere you find a plastic Plug.

From Panozzo you can find plastic Plugs for road signs and photovoltaic signage and for the automotive sector. Panozzo has always been the reference partner for the development of advanced masking caps solutions.

It is very important to to close any holes on machinery or other protection protection from dirt, dust, and moisture. In this case you always try to find an economical solution with a plastic Plug quick to insert and remove.

With hole closure Plugs is possible to close any type of holes on sheet metal, on furniture, on light points, on the wall and others manufactured goods.

Finding the plastic Plug hole cover of the right size for the closure of a hole in sheet metal is very easy. Just measure the diameter of the hole to to close, go to the Panozzo site in the closure holes and click on the image of the selected Plug. The header of the columns in the dimensional table corresponds to the letters found on the technical drawing. You just have to choose the plastic Plug code.

The type of Plug to use depends on the purpose, and for this reason Panozzo proposes both plastic Plugs with high aesthetic value and plastic Plugs economical and fast to apply.

Very often the same plastic Plug can be used for different purposes such as, for example, for or circular molded cases or for poles of protection for pipes.

The use of Plugs of protection against polluting, dirty or moisture agents during shipment or storage is very important because it avoids damage to the product and therefore costs of maintenance. In masking caps you can request a sample of the Plug you want to test.

to close molded cases, standard black Plugs finned in plastic are always available in our warehouse and ready for shipment. The range includes plastic Plugs for tubolar circular, rectangular and square. The dimensions range from 10mm to over 100mm.

The Panozzo Plugs are made of different materials depending on the use. For example, for varnishing you can use a silicone or Epd or polyethylene Plug. Measurements range from 0.5 mm to over 100 mm

Have you ever thought how much time is lost in the production of a Plug in solder iron on tubolar? Using of plastic finned plastic is the fastest, easiest, and most economical solution.

Knowing that it is not always easy to choose the Plug suitable for its purpose we decided to help our customers by sending free samples on request. To ask for them, you just have to go to www.panozzosrl.com. We will send the samples by mail or with your courier to the address you indicate.

How to request masking caps?

To request masking caps, click on the Plug image of your interest. You can select one or more Plugs and, after finishing the selection, click on the link to check the selections and submit the request. We remind you that if you are already a customer of Panozzo or have already requested samples, you can access the ARENA CUSTOMERS, thus avoiding having to enter all your personal data.

How to apply for amedium temperature tapered plug?

If you have to apply for a quote click on the medium temperature tapered plug and then on the code that interests you. Click on the icon to the left of the code: Plug is inserted into the cart. Click on the display to display the shopping cart, indicate the amount of Plugs required and complete all the data on the Master Card if you are not already a customer, otherwise enter user and password.
If you have to add another Plug of the category masking caps or else, click the green arrow back to the products.

Want to download the PDF catalog of the masking caps family?

You can download the updated PDF catalog of plastic Plugs of your interest from the main page of masking caps or the CATALOG CATALOG PDF section of our site www.panozzosrl.com. The catalog shows the image, design and material of production and the size of the plastic Plug that you find on the site.
