THREADED UNIVERSAL PLUG

MATERIAL
POLYTHENE
COLOR
RED
NOTE
GAS column also valid for type thread UNF

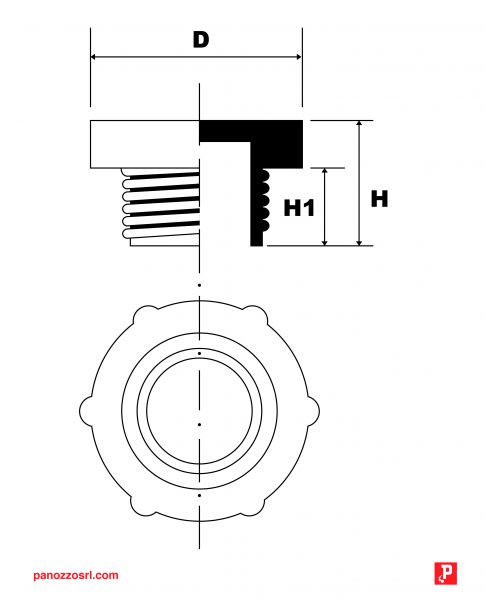

Technical design
SIZES
CODE D H H1 THREAD GAS UNF PITCH
1431 TFU1/8 16,4 10,5 4,2 1/8" 28
1432 TFU1/4 18,8 12,8 6,5 1/4" 19
1433 TFU3/8 22,9 12 5,5 3/8" 19
1434 TFU1/2 28 17,3 10,3 1/2" 14
1435 TFU5/8 31,3 18,4 13,9 5/8" 14
1436 TFU3/4 32,3 17 11 3/4" 14
1437 TFU7/8 38 18,1 13,5 7/8" 14
1438 TFU1 39,8 16,9 10,8 1" 11
1439 TFU1.1/4 49,9 20,9 15 1.1/4" 11
1440 TFU1.1/2 55,2 16,9 10,8 1.1/2" 11
1441 TFU2 73,7 17,5 10,7 2" 11
1442 TFU3 105 16,5 11,3 3" 11
1443 TFU8X1 12,3 14,3 9,5 M8 1
1444 TFU10X1 15,3 14,6 10,4 M10 1
1445 TFU12X1 18,5 16,7 10,7 M12 1
1446 TFU12X1.5 16,7 16,3 8,7 M12 1,5
1447 TFU14X1.5 18,5 17,2 9,5 M14 1,5
1448 TFU16X1.5 22 17,2 12,5 M16 1,5
1449 TFU18X1.5 24,4 18,3 13,7 M18 1,5
1450 TFU20X1.5 26,3 18,2 14 M20 1,5
1451 TFU22X1.5 28,2 18,3 13,7 M22 1,5
1452 TFU24X1.5 31,3 18,5 13,8 M24 1,5
1453 TFU25X1.5 31,3 18,5 14 M25 1,5
1454 TFU26X1.5 32,7 18,7 13,8 M26 1,5
1455 TFU52X1.5 63,7 21,5 15,5 M52 1,5
1456 TFU5/16UX18 14,5 12 7,4 5/16" 18
1457 TFU5/16UX24 14,8 12,3 7,4 5/16" 24
1458 TFU3/8UX24 13,7 14 9,5 3/8" 24
1459 TFU7/16UX20 17,4 16,1 11 7/16" 20
1460 TFU7/16UX24 17,8 12,1 7,1 7/16" 24
1461 TFU1/2UX20 18,5 15,3 10,5 1/2" 20
1462 TFU9/16UX18 22,6 15,4 10,7 9/16" 18
1463 TFU9/16UX24 18,9 13,6 9 9/16" 24
1464 TFU5/8UX18 21 14,8 10 5/8" 18
1465 TFU5/8UX24 20,7 14,8 10 5/8" 24
1466 TFU11/16UX16 25,6 18,1 13,5 11/16" 16
1467 TFU3/4UX16 27 18,7 13,8 3/4" 16
1468 TFU13/16UX16 26,7 18,1 13,5 13/16" 16
1469 TFU7/8UX14 28,8 18,5 13,6 7/8" 14
1470 TFU1UX14 32 17,8 13,2 1" 14
1471 TFU1.1/16UX12 33,4 18,4 13,8 1.1/16" 12
1472 TFU1.1/16UX14 33,3 18,3 13,7 1.1/16" 14
1473 TFU1.3/16UX12 36,8 18,3 13,5 1.3/16" 12
1474 TFU1.5/16U 39,3 16,3 11 1.5/16" 12
1475 TFU1.5/8UX12 50,6 17,3 12,9 1.5/8" 12
1476 TFU1.3/4UX12 53,2 19,7 13,8 1.3/4" 12
1477 TFU1.7/8UX12 58,4 22,5 16,7 1.7/8" 12
1478 TFU2.1/2UX12 73,6 20,6 15 2.1/2" 12
THREADED UNIVERSAL PLUG

Where to buy threaded universal plug?

If you are looking for Threaded caps or if you are looking for a particular type of Threaded caps model then you are on the right site because Panozzo has an almost infinite series of all types of threaded protections to satisfy all users.

Panozzo offers the customer the possibility of creating small batches for articles in plastic, according to his needs.

The Threaded caps of Panozzo have an easy grip, which ensures a firm insertion, protecting the thread from dirt, moisture and corrosion.

The www.panozzosrl.com portal is structured in such a way as to allow the client to easily find the Threaded caps of plastic he needs, thanks to the well-highlighted images.

Where to find Threaded caps?

Our Threaded caps of plastic can be found in section threaded protections of our www.panozzosrl.com site.

The Threaded caps of plastic that you find in the catalog are available in our warehouse and will be shipped as soon as possible.

Thanks to the Panozzo's extensive expertise in consulting, design and production of molded parts in plastic and Threaded caps, our offer of threaded protections can embrace various application areas.

For Panozzo quality is everything. Browse in the category threaded protections to find out all of our products we provide.

On the site www.panozzosrl.com you can find Threaded caps of plastic for signage and road signs, for photovoltaic, for automotive sector. Panozzo has always been the reference partner for the development of advanced solutions for threaded protections.

Finding closure of holes on sheet metal is very simple because Panozzo has a wide variety of shapes and sizes of Threaded caps in plastic.

The type of Threaded caps to be used depends on the purpose, and for this reason Panozzo offers both Threaded caps of plastic with high aesthetic value and Threaded caps in plastic cheap and quick to apply.

The company has a wide range of Threaded caps threaded of protection thread. Our Threaded caps in plastic can be used to protect threads metric from M8 to M52, GAS from 1/8 "to 3" or threads UNF from 5/16 "to 2.1 / 2".

Very often the same Threaded caps in plastic can be used for different purposes such as for example for molded cases circular or for poles or of protection for pipes.

It is very important to avoid damage due to pollutants, dirt or moisture during shipping or storage. Panozzo recommends using Threaded caps of protection to avoid these problems and to incur higher maintenance costs. In threaded protections you can request a sample of the Threaded caps that you want to test.

How to request threaded protections?

To request samples of threaded protections click on the image of the Threaded caps of your interest. You can select one or more Threaded caps and, once you have chosen, click on the link to check the selections and send the request. Please note that if you are already a customer of Panozzo or have already requested samples, you can log in to the CUSTOMER AREA, thus avoiding having to enter all your personal data.

How much time lost in the production of a Threaded caps in iron to be welded on tubolar! Panozzo has a faster, simpler and more economical solution, Threaded caps finned of plastic.

When we speak of protection for pipes threaded we can understand the internal or external male. This is not a problem because Panozzo has both Threaded caps male and Threaded caps female.

Panozzo's Threaded caps are made of different materials depending on the use. For example for varnishing a Threaded caps can be used in silicone or Epd or polyethylene. The measures range is from 0.5 mm. to over 100 mm.

for closure molded cases are used Threaded caps finned in plastic standard color black, always available in stock and ready to ship. The range includes Threaded caps of plastic for tubolar circular, rectangular and square. The dimensions range from 10mm. at over 100mm.

Our Threaded caps of protection pipes, of protection threads or more simply for closure holes can save time and money by avoiding damage caused by dust, dirt or liquids.

How to apply for athreaded universal plug?

If you have to apply for a quote click on the threaded universal plug and then on the code that interests you. Click on the icon to the left of the code: Threaded caps is inserted into the cart. Click on the display to display the shopping cart, indicate the amount of Threaded caps required and complete all the data on the Master Card if you are not already a customer, otherwise enter user and password.
If you have to add another Threaded caps of the category threaded protections or else, click the green arrow back to the products.

Want to download the PDF catalog of the threaded protections family?

You can download the updated PDF catalog of plastic Threaded caps of your interest from the main page of threaded protections or the CATALOG CATALOG PDF section of our site www.panozzosrl.com.

The catalog shows the image, design and material of production and the size of the plastic Threaded caps that you find on the site www.panozzosrl.com.
