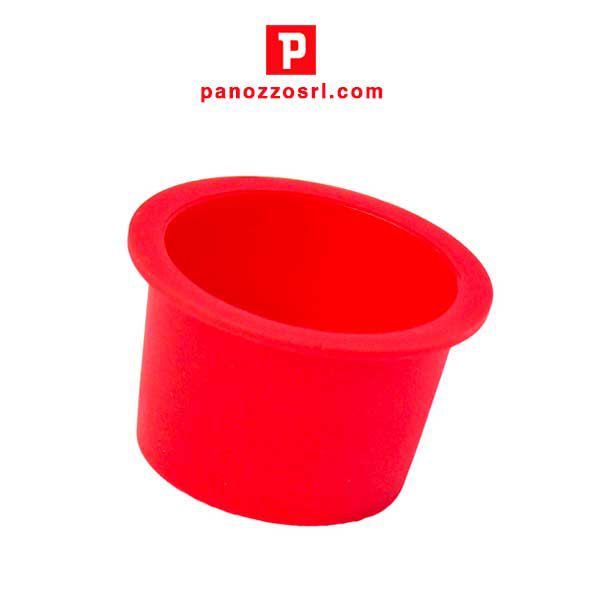

TAPERED PROTECTION PLUG

COLOR
RED

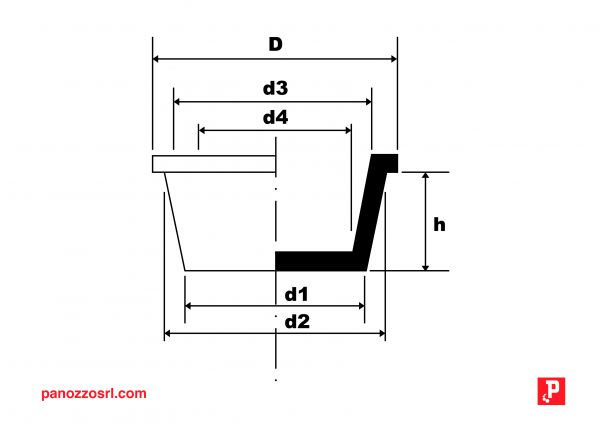

Technical design
SIZES
CODE D D1 D2 D3 D4 H INSERITO IN UN FILETTO MASCHIO INSERITO IN UN FILETTO FEMMINA HOLE RANGE RANGE D. EST.
8728 STC2,9 7.9 2.9 4.6 3 1.3 9.5 - - 2,9 - 4,6 1,3 - 3
8729 STC4,4 9.5 4.4 6.1 4.5 2.8 9.5 M4 M6, 1/4" UNF 4,4 - 6,1 2,8 - 4,5
8730 STC4,7 11.7 4.7 8.5 5.7 2.5 22.5 - - 4,7 - 8,5 2,5 - 5,7
8731 STC5,6 10.5 5.6 7 5.4 4 8.4 - - 5,6 - 7 4 - 5,4
8732 STC6,2 11.1 6.2 7.6 5.9 5 9.5 M5/M6 M8, 5/16" UNF 6,2 - 7,6 5 - 5,9
8733 STC7,7 12.7 7.7 9.3 7 5.5 8 1/4" UNF - 7,7 - 9,3 5,5 - 7
8734 STC7,7B 12.7 7.7 9.1 7.7 6.3 9.5 - 3/8" UNF 7,7 - 9,1 6,3 - 7,7
8735 STC8,4 13.5 8.4 10 8.2 6.9 9.5 M8, 5/6" UNF M10, 1/8" GAS, 7/16" UNF 8,4 - 10 6,9 - 8,2
8736 STC8,6 13.7 8.6 10.3 8.2 7 9.8 - - 8,6 - 10,3 7 - 8,2
8737 STC9 13.9 9 10.7 8.8 7.5 11.5 - - 9 - 10,7 7,5 - 8,8
8739 STC9,4 14 9.4 10.8 9.3 7.7 8.5 - - 9,4 - 10,8 7,7 - 9,3
8740 STC9,9 15 9.9 11.7 10.1 8.3 10,9 M10 x 1, 1/8" GAS M12 x 1, M12 x 1.5 9,9 - 11,7 8,3 - 10,1
8741 STC10 15 10 11.8 10 8.5 9.5 M10, 3/8" UNF M12 10 - 11,8 8,5 - 10
8743 STC10,6 15.6 10.6 12.2 10 8.6 9.8 - - 10,6 - 12,2 8,6 - 10
8744 STC10,9 15.9 10.9 12.3 10.7 9.1 9.3 1/8" GAS 1/4" GAS, 1/2" UNF 10,9 - 12,3 9,1 - 10,7
8745 STC11,2 17.5 11.2 14 12.1 9.2 18.5 - - 11,2 - 14 9,2 - 12,1
8746 STC11,3 16.3 11.3 12.9 10.9 9.4 8.5 - - 11,3 - 12,9 9,4 - 10,9
8747 STC11,3B 17 11.3 13.2 11.6 9.8 11 - - 11,3 - 13,2 9,8 - 11,6
8749 STC12 17.5 12 14.8 12 10.5 11 - - 12 - 14,8 10,5 - 12
8750 STC12,1 17.5 12.1 13.9 12.3 10.6 11 M12 9/16" UNF 12,1 - 13,9 10,6 - 12,3
8751 STC12,5 17.5 12.5 14 12 10.5 8.9 7/16" UNF - 12,5 - 14 10,5 - 12
8752 STC12,8 18.5 12.8 15.1 13.2 10.7 23.1 - - 12,8 - 15,1 10,7 - 13,2
8753 STC13,6 19 13.6 15.3 13.7 12.1 11.2 1/4" GAS, 1/2" UNF M16, 5/8" UNF 13,6 - 15,3 12,1 - 13,7
8754 STC14,2 19 14.2 16 14.4 12.7 12.1 M14, 9/16" UNF 3/8" GAS 14,2 - 16 12,7 - 14,4
8755 STC14,7 20.6 14.7 17 15.4 13.2 12.7 - M18 14,7 - 17 13,2 - 15,4
8756 STC14,9 21 14.9 16.4 14.5 13.5 11.5 - - 14,9 - 16,4 13,5 - 14,5
8757 STC15,5 20.6 15.5 17.1 15 13.4 8.5 - - 15,5 - 17,1 13,4 - 15
8758 STC16 22 16 18.3 18.3 15 14.1 - - 16 - 18,3 15 - 18,3
8759 STC16,1 21 16.1 17.6 15.5 14.5 8.5 - - 16,1 - 17,6 14,5 - 15,5
8760 STC16,4 22.2 16.4 18.3 16.9 14.3 12.3 M16, 5/8" UNF M20, 3/4" UNF 16,4 - 18,3 14,3 - 16,9
8761 STC16,6 21.9 16.6 18.5 16.5 14.5 13 - - 16,6 - 18,5 14,5 - 16,5
8762 STC17,1 22 17.1 19.4 17.8 15.5 13 3/8" GAS M20 x 1.5 17,1 - 19,4 15,5 - 17,8
8763 STC17,2 24.2 17.2 20.2 18 15.5 18 - - 17,2 - 20,2 15,5 - 18
8764 STC17,5 24 17.5 20.1 18.5 15.9 14.5 M18 x 1.5, M18 x 2 1/2" GAS 17,5 - 20,1 15,9 - 18,5
8765 STC17,7 22.2 17.7 19.6 17.3 15.2 12.7 3/8" GAS M20 17,7 - 19,6 15,2 - 17,3
8766 STC17,8 23.8 17.8 20 18.3 16.4 13.4 M18 1/2" GAS 17,8 - 20 16,4 - 18,3
8767 STC18,3 25.4 18.3 21.4 19.3 16.4 17.5 - - 18,3 - 21,4 16,4 - 19,3
8768 STC18,5 24.6 18.5 20.9 19.3 17.1 14.3 3/4" UNF M22 18,5 - 20,9 17,1 - 19,3
8769 STC19 25.8 19 21.5 19.7 17.6 14.3 - M22, 7/8" UNF 19 - 21,5 17,6 - 19,7
8770 STC19,4 26.5 19.4 22.5 21.3 18 19 - - 19,4 - 22,5 18 - 21,3
8771 STC20,5 27.2 20.5 23.2 21.2 18.5 17.5 - - 20,5 - 23,2 18,5 - 21,2
8773 STC21,3 27 21.3 23.2 21.5 19.2 15.9 M20, 1/2" GAS 5/8" GAS 21,3 - 23,2 19,2 - 21,5
8774 STC22 29 22 24.8 23.2 20.4 17 M22 x 2 - 22 - 24,8 20,4 - 23,2
8775 STC22B 28.5 22 25 23 20.5 15.9 M22 1" UNF 22 - 25 20,5 - 23
8776 STC22.5 28.9 22.5 25.5 23.3 20 17.8 7/8" UNF - 22,5 - 25,5 20 - 23,3
8777 STC22.7 27 22.7 24.9 22.7 20.8 12 - - 22,7 - 24,9 20,8 - 22,7
8778 STC23,4 29.3 23.4 26.4 24.4 21.4 17.5 M24, 5/8" GAS 3/4" GAS M27, M26 23,4 - 26,4 21,4 - 24,4
8779 STC24 31 24 26,9 25 21.9 18 - - 24 - 26,9 21,9 - 25
8780 STC24,6 34 24.6 29.5 27.5 22.5 27.5 - - 24,6 - 29,5 22,5 - 27,5
8781 STC24,7 32 24.7 27.7 26.1 23.2 19 M27, 1" UNF 1.1/8" UNF 24,7 - 27,7 23,2 - 26,1
8782 STC25,2 33 25.2 29.2 27.7 23.7 19 - - 25,2 - 29,2 23,7 - 27,7
8783 STC26,6 31.6 26.6 29.7 28.3 24.6 26.3 3/4" GAS 7/8" GAS 26,6 - 29,7 24,6 - 28,3
8784 STC27,8 35 27.8 31.1 29.5 26.2 19 M27 x 1.5, M28 x 1.5 M25 x 1.5, 7/8" GAS 27,8 - 31,1 26,2 - 29,5
8785 STC28 35.3 28 30.9 29 26.5 19 M27, M28 M30 28 - 30,9 26,5 - 29
8786 STC29,2 34.7 29.2 31.2 30.3 28 12.7 M22 x 2 - 29,2 - 31,2 28 - 30,3
8787 STC29,8 37 29.8 31.6 30 27.9 16 M30 x 1.5, M30 x 2, 7/8" GAS 1.5/16" UNF 29,8 - 31,6 27,9 - 30
8788 STC30 36.7 30 32.6 30.7 27.5 15.2 M30 M33, 1" GAS 30 - 32,6 27,5 - 30,7
8789 STC30,5 37 30.5 33.3 31.1 28.4 14.5 7/8" GAS - 30,5 - 33,3 28,4 - 31,1
8790 STC31,1 38.1 31.1 34.3 32 29.3 17.5 - 1.3/8" UNF 31,1 - 34,3 29,3 - 32
8791 STC31,1B 38.1 31.1 34.4 32.8 29.8 19 1.1/4" UNF M35 31,1 - 34,4 29,8 - 32,8
8792 STC31,6 40.2 31.6 36.3 34 29.8 24.1 1.5/16" UNF - 31,6 - 36,3 29,8 - 34
8793 STC33,3 38.1 33.3 34.4 32.8 31.4 9.5 - - 33,3 - 34,4 31,4 - 32,8
8794 STC33,3B 41.6 33.3 37.2 35.6 31.7 22.2 1.1/8" GAS 1.1/2"UNF 33,3 - 37,2 31,7 - 35,6
8795 STC33,9 42.3 33.9 38.3 36.5 31.9 24.5 - - 33,9 - 38,3 31,9 - 36,5
8796 STC33,9B 42.2 33.9 37.3 35.8 32 12.3 1.3/8" UNF 1.5/8"UNF 33,9 - 37,3 32 - 35,8
8797 STC34,9 42.7 34.9 36.4 35.2 33.1 8.2 - - 34,9 - 36,4 33,1 - 35,2
8798 STC35,9 44.1 35.9 40.2 37.5 33.2 24.5 - - 35,9 - 40,2 33,2 - 37,5
8799 STC36,3 42.3 36.3 38.3 37 34.6 12 - - 36,3 - 38,3 34,6 - 37
8800 STC36,9 44 36.9 40.6 39 35 22.5 1.1/8" GAS 1.1/4"GAS 36,9 - 40,6 35 - 39
8801 STC38,6 44.5 38.6 40.6 39 37.1 12.7 1.1/2" UNF - 38,6 - 40,6 37,1 - 39
8802 STC39,6 47.6 39.6 42.7 41.1 38.2 18.5 1.3/8" GAS M42, M45, 1.3/8" GAS 39,6 - 42,7 38,2 - 41,1
8803 STC40,8 49 40.8 44.7 41.8 37.7 24 - - 40,8 - 44,7 37,7 - 41,8
8804 STC41,4 49.2 41.4 44.8 43 39.7 19 1.1/4" GAS M45 41,4 - 44,8 39,7 - 43
8805 STC42,5 50.7 42.5 44.8 43 40.7 12.6 - - 42,5 - 44,8 40,7 - 43
8806 STC43,4 53.3 43.4 48.5 47 42 24.5 - - 43,4 - 48,5 42 - 47
8807 STC44,1 49.8 44.1 46.7 45.7 42.8 18.4 - - 44,1 - 46,7 42,8 - 45,7
8808 STC44,4 51 44.4 47.7 46.1 42.8 19 M45 x 1.5/2/3 1.7/8" UNF - 1.1/2" GAS 44,4 - 47,7 42,8 - 46,1
8810 STC45,2 53.4 45.2 49 47 43.7 24.5 1.3/8" GAS 1.1/2" GAS 45,2 - 49 43,7 - 47
8811 STC45,9 50.8 45.9 46.3 45 44.3 9.5 - M48 45,9 - 46,3 44,3 - 45
8812 STC46 54 46 50 48 44.3 24.8 - - 46 - 50 44,3 - 48
8813 STC47,2 55.8 47.2 51.9 48.7 44.5 24 - - 47,2 - 51,9 44,5 - 48,7
8814 STC47,5 54 47.5 50.3 49 45.2 25 - - 47,5 - 50,3 45,2 - 49
8815 STC48 57.1 48 52.7 50.7 46.3 25.4 - - 48 - 52,7 46,3 - 50,7
8816 STC48,6 55.5 48.6 51.2 48.9 49.7 18.7 1.1/2" GAS M52 48,6 - 51,2 49,7 - 48,9
8817 STC49,8 58 49.8 54 52 47.5 24.3 1.1/2" GAS M52 49,8 - 54 47,5 - 52
8818 STC48,9 58 48.9 53 52 47.2 24.3 - - 48,9 - 53 47,2 - 52
8819 STC51,1 57 51.1 54.4 52 47.7 25 - - 51,1 - 54,4 47,7 - 52
8820 STC51,5 58.3 51.5 54.1 52 49.6 18.5 - - 51,5 - 54,1 49,6 - 52
8821 STC53,5 62.4 53.5 57 55.3 51.2 25.1 1.3/4" GAS M56, M55 53,5 - 57 51,2 - 55,3
8822 STC54 62.4 54 58.4 55 50.8 24.5 - - 54 - 58,4 50,8 - 55
8823 STC54,2 65 54.2 58.6 57 52.6 26 - - 54,2 - 58,6 52,6 - 57
8824 STC55 65 55 61 59 52.2 25 - - 55 - 61 52,2 - 59
8825 STC55,4 65 55.4 58.8 57.2 53.7 25.1 M58 M60, M58, 2" GAS 55,4 - 58,8 53,7 - 57,2
8826 STC57,5 63.6 57.5 57.6 56.1 55.2 12.8 - - 57,5 - 57,6 55,2 - 56,1
8827 STC58,4 67 58.4 62.8 61.1 56.7 25 M60 x 1.5/2/4, 2" GAS M60 x 1.5, M62 x 1.5 58,4 - 62,8 56,7 - 61,1
8828 STC59,3 70.3 59.3 67.3 64.1 56.7 31.7 - - 59,3 - 67,3 56,7 - 64,1
8829 STC59,6 66.7 59.6 62.6 61 57 24.6 M60, 2" GAS M62, M60 59,6 - 62,6 57 - 61
8830 STC62 71 62 66.4 64.3 59 28 - - 62 - 66,4 59 - 64,3
8831 STC63,3 73 63.3 69.8 67.8 61.5 25.4 - - 63,3 - 69,8 61,5 - 67,8
8832 STC64,5 70.6 64.5 67.3 62.1 65.6 15.8 - - 64,5 - 67,3 65,6 - 62,1
8833 STC67,1 75 67.1 70.4 68.7 65.4 19 2.1/2" GAS 67,1 - 70,4 65,4 - 68,7
8834 STC68,1 74.6 68.1 70.9 69.3 66.3 19 - - 68,1 - 70,9 66,3 - 69,3
8835 STC70 79.4 70 75.8 74 68.1 25.4 M76, M75, 2.1/2" GAS 70 - 75,8 68,1 - 74
8836 STC72,4 83 72.4 75.7 74.1 70.8 19 - - 72,4 - 75,7 70,8 - 74,1
8837 STC74 82.5 74 77 73.9 71.5 18.7 - - 74 - 77 71,5 - 73,9
8838 STC74B 80 74 76.8 73.4 70 24.4 - - 74 - 76,8 70 - 73,4
8839 STC76,8 85.7 76.8 82.2 80.8 74.8 25.4 - - 76,8 - 82,2 74,8 - 80,8
8840 STC77,1 85.7 77.1 80.7 78.2 74.8 19 2.1/2" GAS - 77,1 - 80,7 74,8 - 78,2
8841 STC80 89.8 80 86.1 82 77.5 25.1 - 3" GAS 80 - 86,1 77,5 - 82
8842 STC84,2 94.5 84.2 90.8 88.3 80.2 28 3" GAS - 84,2 - 90,8 80,2 - 88,3
8843 STC84,5 92 84.5 87.8 85.7 82.4 19 - 3" GAS 84,5 - 87,8 82,4 - 85,7
8844 STC85,3 92 85.3 88 85.5 82.9 19 - - 85,3 - 88 82,9 - 85,5
8845 STC87,5 96.7 87.5 93.6 90.5 84.3 34.3 - - 87,5 - 93,6 84,3 - 90,5
8846 STC88,1 96.5 88.1 93.3 89.9 85.1 28.6 - - 88,1 - 93,3 85,1 - 89,9
8847 STC92,1 100 92.1 97 94 88.3 32 - - 92,1 - 97 88,3 - 94
8848 STC93,5 107.5 93.5 100.3 97.8 89.9 26.5 - - 93,5 - 100,3 89,9 - 97,8
8849 STC94,5 103.6 94.5 100.6 97 91 34.5 - - 94,5 - 100,6 91 - 97
8850 STC96,5 110 96.5 102 101 94 31 - - 96,5 - 102 94 - 101
8851 STC98 107.2 98 102 98.5 94.8 24.7 - - 98 - 102 94,8 - 98,5
8852 STC98,2 106 98.2 103.3 99 95 28.8 - - 98,2 - 103,3 95 - 99
8853 STC101 109 101 107 103 98 28.6 - - 101 - 107 98 - 103
8854 STC101,9 109 101.9 107.5 103 98 28.6 - - 101,9 - 107,5 98 - 103
8855 STC106,7 113.3 106.7 111.7 107.4 107.4 28.6 - - 106,7 - 111,7 107,4 - 107,4
8856 STC108 118.5 108 114.1 111.6 106.4 35.2 - - 108 - 114,1 106,4 - 111,6
8857 STC109 123 109 113 111 106 27 - - 109 - 113 106 - 111
8858 STC110 118.5 110 115 109 105 28 - - 110 - 115 105 - 109
8859 STC111,5 122 111.5 117.6 115 107.5 35 - - 111,5 - 117,6 107,5 - 115
8860 STC112,1 116.8 112.1 114.3 109.8 107.5 28.6 - - 112,1 - 114,3 107,5 - 109,8
8861 STC124 134 124 128 125 121 23 - - 124 - 128 121 - 125
8862 STC129 139.5 129 135.1 132 124 36.5 - - 129 - 135,1 124 - 132
8863 STC133 143 133 137 134.2 130.2 22 - - 133 - 137 130,2 - 134,2
8864 STC139,5 150 139.5 145.6 140 135 36.5 - - 139,5 - 145,6 135 - 140
8865 STC141 164 141 150 148 138 25.4 - - 141 - 150 138 - 148
8866 STC146,8 159.5 146.8 151 148.6 142.8 33 - - 146,8 - 151 142,8 - 148,6
8867 STC153,7 178.9 153.7 161.5 160 152 29.6 - - 153,7 - 161,5 152 - 160
8868 STC157 167.5 157 163 160 152 36.5 - - 157 - 163 152 - 160
8869 STC202,9 218.7 202.9 203.8 198.8 198 32.7 - - 202,9 - 203,8 198 - 198,8
8870 STC203,5 216 203.5 208.5 205.9 200.9 24 - - 203,5 - 208,5 200,9 - 205,9
8871 STC216 241.5 216 223.6 223 213 29.1 - - 216 - 223,6 213 - 223
8872 STC252,2 272.5 252.2 257.8 247.8 247.2 33.8 - - 252,2 - 257,8 247,2 - 247,8
8873 STC304,2 322.6 304.2 308.4 299.4 299.2 33.9 - - 304,2 - 308,4 299,2 - 299,4
TAPERED PROTECTION PLUG

Where to buy tapered protection plug?

If you are looking for Parallel protection plugs or if you are looking for a particular type of Parallel protection plug model then you are on the right site because Panozzo has an almost infinite series of all types of holes protection to satisfy all users.

Strong point is the website www.panozzosrl.com, which is structured according to the use of products such as tapered protection plug and images Parallel protection plugs in plastic well in evidence.

Panozzo has a warehouse of over 700 sqm. which counts more than 5,000 articles of plastic printed in various materials (pvc, , epdm, silicone, etc.)

Finding the plastic Parallel protection plug hole cover of the right size for the closure of a hole in sheet metal is very easy. Just measure the diameter of the hole to to close, go to the Panozzo site in the closure holes and click on the image of the selected Parallel protection plug. The header of the columns in the dimensional table corresponds to the letters found on the technical drawing. You just have to choose the plastic Parallel protection plug code.

In the site section of holes protection you can find the Parallel protection plugs for a variety of product categories such as mechanics, for body work, boating, modelling or automotive.

The Panozzo goal is to help companies make purchases as economically as possible. For this reason, we are not only seen as a vendor but as one who proposes individual solutions to solve problems related to holes protection.

plastic Parallel protection plugs are considered a poor and superfluous product. Very often we do not realize how a protection Parallel protection plug or protection threads or more simply closure holes can save you time and money because of damage caused by dust, dirt or liquids.

Where to find plastic Parallel protection plugs? Simple! In the holes protection of our site www.panozzosrl.com you can find what you are looking for.

Very often the same plastic Parallel protection plug can be used for different purposes such as, for example, for or circular molded cases or for poles of protection for pipes.

From www.panozzosrl.com you can request free samples of tapered protection plug, bids and/or the PDF catalog of holes protection.

How to request holes protection?

To request holes protection, click on the Parallel protection plug image of your interest. You can select one or more Parallel protection plugs and, after finishing the selection, click on the link to check the selections and submit the request. We remind you that if you are already a customer of Panozzo or have already requested samples, you can access the ARENA CUSTOMERS, thus avoiding having to enter all your personal data.

Depending on the huge discrepancy between commodity value and labor cost, it is necessary to optimize the purchase of plastic Parallel protection plugs. The right balance between commodity cost and labor cost is fundamental in the management of holes protection to exploit potentially unrealized potential.

The ability to quickly manage the supply of Parallel protection plugs in plastic, thanks to a well-stocked warehouse and continuous technological innovation for customer order management, makes Panozzo a point reference for holes protection

In a logic of technical support and economic ethics, we evaluate and recommend the type of Parallel protection plug in plastic more suitable for the customer.

Want to download the PDF catalog of the holes protection family?

You can download the updated PDF catalog of plastic Parallel protection plugs of your interest from the main page of holes protection or the CATALOG CATALOG PDF section of our site www.panozzosrl.com. The catalog shows the image, design and material of production and the size of the plastic Parallel protection plug that you find on the site.

Very often the closure of holes on sheet metal is needed. Finding the solution is very simple for Panozzo because we have a wide variety of shapes and sizes of plastic Parallel protection plugs.

With hole closure Parallel protection plugs is possible to close any type of holes on sheet metal, on furniture, on light points, on the wall and others manufactured goods.

The use of Parallel protection plugs of protection against polluting, dirty or moisture agents during shipment or storage is very important because it avoids damage to the product and therefore costs of maintenance. In holes protection you can request a sample of the Parallel protection plug you want to test.

When speaking about of protection for threaded pipes it can mean the inside or male. This is not a problem because Panozzo has both Parallel protection plugs male and Parallel protection plugs female.

How to apply for atapered protection plug?

If you have to apply for a quote click on the tapered protection plug and then on the code that interests you. Click on the icon to the left of the code: Parallel protection plug is inserted into the cart. Click on the display to display the shopping cart, indicate the amount of Parallel protection plugs required and complete all the data on the Master Card if you are not already a customer, otherwise enter user and password.
If you have to add another Parallel protection plug of the category holes protection or else, click the green arrow back to the products.

ITEMS LIST
Adjustable feet - Bushes - Buttons - Cable ducts - Caps - Clips - Connectors - Edge protectors - Fasteners - Ferrules - Flange covers - Inserts Glides - Nut protection caps - Nuts - Packaging profiles protection - Parallel protection plugs - Pipes - Plugs - Protective spirals - Rivets - Rods - Screws - Self adhesive disc - Sheaths - Sheets - Soft end caps - Spacers - Threaded Caps - Threaded Protection Caps - Ties - Tubolar nets - Uniscrew caps - Washers
OFFLINE PAGES
Parallel protection plugs - Plastic parallel plugs
Back to top
