SNAP FASTENERS

MATERIAL

POLYETHYLENE

COLOR

WHITE/BLACK

NOTE

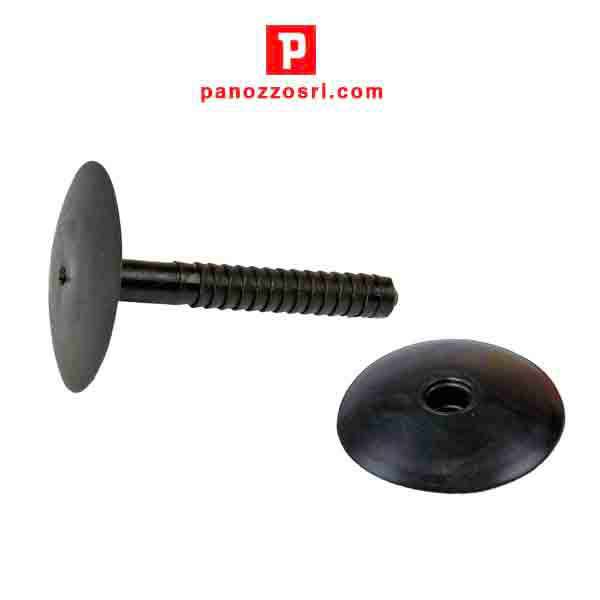

Plastic Snap Fasteners are ideas for fixing corrugated panels.
The Snap Fasteners are supplied in white or black polyethylene, in 15mm or 30mm head diameter

SIZES

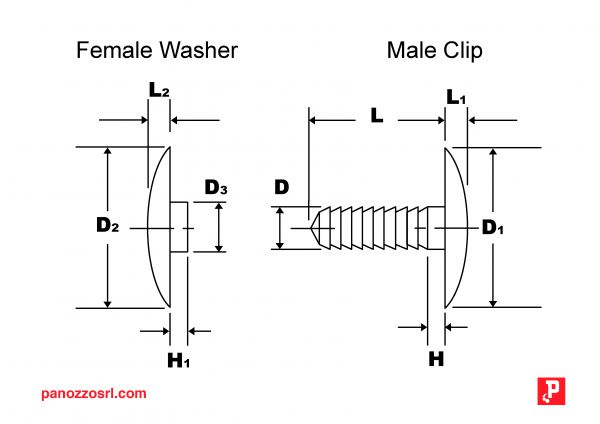

	CODE	COLOR	D	D1	D2	D3	H	H1	L	L1	L2	HOLE DIAMETER	MAX PANEL THICKNESS
7857	SFA8-20X6-10-N	Black	6	30	30	8	-	6	12	3	3	8-20	6-10
7859	SFA8-20X20-40-N	Black	6	30	30	8	14	6	44	3	3	8-20	20-40
7860	SFA8-20X12-18-N	Black	6	30	30	8	-	12	12	3	3	8-20	12-18
7862	SFA8-20X12-46-N	Black	6	30	30	8	14	12	44	3	3	8-20	12-46
7864	SFA8-20X6-22-B	White	6	30	30	8	4	6	26	3	3	8-20	6-22
7865	SFA8-20X20-40-B	White	6	30	30	8	14	6	44	3	3	8-20	20-40
7866	SFA8-20X12-18-B	White	6	30	30	8	-	12	12	3	3	8-20	12-18
7868	SFA8-20X12-46-B	White	6	30	30	8	14	12	44	3	3	8-20	12-46
7871	SFA5-10X0-8-B	White		15	15				15	2	3,5	5-10	0 - 8
13401	SFA5-10X0-8-N	Black		15	15				15	2	3,5	5-10	0 - 8
7872	SFA5-10X0-16-B	White		15	15				22	2	3,5	5-10	0 - 16
13402	SFA5-10X0-16-N	Black		15	15				22	2	3,5	5-10	0 - 16
