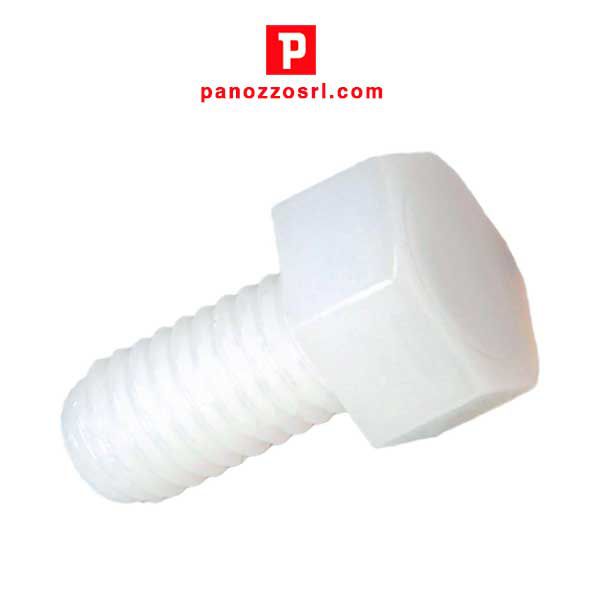

HEXAGONAL HEAD SCREWS

MATERIAL
NYLON 6.6
COLOR
NATURAL
NOTE
Plastic screws are fasteners used for assembling plastic components.
Nylon screws can be used with or without nuts and bolts . Plastic screws are lightweight, tough, resistant to corrosion, and have good electrical-insulating properties.
CONFORM TO DIMENSIONAL TOLERANCES TYPE 1 DIN 933 - ISO 4017 - NF EN 24017
TYPE 2: DIN 931

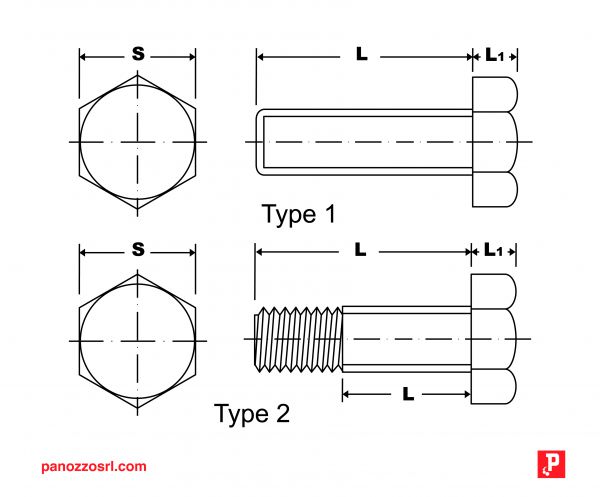

Technical design
SIZES
CODE L L1 L2 S THREAD FILETTO TYPE
1955 VTE1-M2X4 4 1,2 3,2 M2 0.4 1
1956 VTE1-M2X5 5 1,2 3,2 M2 0.4 1
1957 VTE1-M2X6 6 1,2 3,2 M2 0.4 1
1958 VTE1-M2X8 8 1,2 3,2 M2 0.4 1
1959 VTE1-M2X10 10 1,2 3,2 M2 0.4 1
1960 VTE1-M2X12 12 1,2 3,2 M2 0.4 1
1961 VTE1-M2X16 16 1,2 3,2 M2 0.4 1
1962 VTE1-M2X20 20 1,2 3,2 M2 0.4 1
1963 VTE1-M2X25 25 1,2 3,2 M2 0.4 1
1964 VTE1-M2,5X4 4 1,3 4 M2,5 0.45 1
1965 VTE1-M2,5X4,5 4,5 1,3 4 M2,5 0.45 1
1966 VTE1-M2,5X5 5 1,3 4 M2,5 0.45 1
1967 VTE1-M2.5X6 6 1,3 4 M2,5 0.45 1
1968 VTE1-M2.5X8 8 1,3 4 M2,5 0.45 1
1969 VTE1-M2,5X10 10 1,3 4 M2,5 0.45 1
1970 VTE1-M2.5X12 12 1,3 4 M2,5 0.45 1
1971 VTE1-M2.5X16 16 1,3 4 M2,5 0.45 1
1972 VTE1-M2.5X20 20 1,3 4 M2,5 0.45 1
1973 VTE1-M2.5X25 25 1,3 4 M2,5 0.45 1
1974 VTE1-M3X4 4 2 5,5 M3 0.5 1
1975 VTE1-M3X5 5 2 5,5 M3 0.5 1
1976 VTE1-M3X6 6 2 5,5 M3 0.5 1
1977 VTE1-M3X8 8 2 5,5 M3 0.5 1
1978 VTE1-M3X10 10 2 5,5 M3 0.5 1
1979 VTE1-M3X12 12 2 5,5 M3 0.5 1
1980 VTE1-M3X16 16 2 5,5 M3 0.5 1
1981 VTE1-M3X20 20 2 5,5 M3 0.5 1
1982 VTE1-M3X25 25 2 5,5 M3 0.5 1
1983 VTE1-M3X30 30 2 5,5 M3 0.5 1
1984 VTE1-M4X6 6 2,8 7 M4 0.7 1
1985 VTE1-M4X8 8 2,8 7 M4 0.7 1
1986 VTE1-M4X10 10 2,8 7 M4 0.7 1
1987 VTE1-M4X12 12 2,8 7 M4 0.7 1
1988 VTE1-M4X16 16 2,8 7 M4 0.7 1
1989 VTE1-M4X18 18 2,8 7 M4 0.7 1
1990 VTE1-M4X20 20 2,8 7 M4 0.7 1
1991 VTE1-M4X25 25 2,8 7 M4 0.7 1
1992 VTE1-M4X30 30 2,8 7 M4 0.7 1
1993 VTE1-M4X40 40 2,8 7 M4 0.7 1
1994 VTE1-M5X6 6 3,5 8 M5 0.8 1
1995 VTE1-M5X8 8 3,5 8 M5 0.8 1
1996 VTE1-M5X10 10 3,5 8 M5 0.8 1
1997 VTE1-M5X12 12 3,5 8 M5 0.8 1
1998 VTE1-M5X16 16 3,5 8 M5 0.8 1
1999 VTE1-M5X20 20 3,5 8 M5 0.8 1
2000 VTE1-M5X25 25 3,5 8 M5 0.8 1
2001 VTE1-M5X30 30 3,5 8 M5 0.8 1
2002 VTE1-M5X40 40 3,5 8 M5 0.8 1
2003 VTE1-M5X50 50 3,5 8 M5 0.8 1
2004 VTE1-M6X5 5 4 10 M6 1.0 1
2005 VTE1-M6X6.5 6,5 4 10 M6 1.0 1
2006 VTE1-M6X8 8 4 10 M6 1.0 1
2007 VTE1-M6X10 10 4 10 M6 1.0 1
2008 VTE1-M6X12 12 4 10 M6 1.0 1
2009 VTE1-M6X16 16 4 10 M6 1.0 1
2010 VTE1-M6X20 20 4 10 M6 1.0 1
2011 VTE1-M6X22 22 4 10 M6 1.0 1
2012 VTE1-M6X25 25 4 10 M6 1.0 1
2013 VTE1-M6X30 30 4 10 M6 1.0 1
2014 VTE1-M6X40 40 4 10 M6 1.0 1
2015 VTE1-M6X45 45 4 10 M6 1.0 1
2016 VTE1-M6X50 50 4 10 M6 1.0 1
2017 VTE1-M6X60 60 4 10 M6 1.0 1
2018 VTE1-M6X65 65 4 10 M6 1.0 1
2019 VTE1-M6X70 70 4 10 M6 1.0 1
2020 VTE1-M6X80 80 4 10 M6 1.0 1
2021 VTE1-M8X8 8 5,3 13 M8 1.25 1
2022 VTE1-M8X16 16 5,3 13 M8 1.25 1
2023 VTE1-M8X20 20 5,3 13 M8 1.25 1
2024 VTE1-M8X25 25 5,3 13 M8 1.25 1
2025 VTE1-M8X30 30 5,3 13 M8 1.25 1
2026 VTE1-M8X35 35 5,3 13 M8 1.25 1
2027 VTE1-M8X40 40 5,3 13 M8 1.25 1
2028 VTE1-M8X50 50 5,3 13 M8 1.25 1
2029 VTE1-M8X60 60 5,3 13 M8 1.25 1
2030 VTE1-M8X70 70 5,3 13 M8 1.25 1
2031 VTE1-M8X80 80 5,3 13 M8 1.25 1
2032 VTE1-M10X16 16 6,4 17 M10 1.5 1
2033 VTE1-M10X20 20 6,4 17 M10 1.5 1
2034 VTE1-M10X25 25 6,4 17 M10 1.5 1
2035 VTE1-M10X30 30 6,4 17 M10 1.5 1
2036 VTE1-M10X40 40 6,4 17 M10 1.5 1
2037 VTE1-M10X50 50 6,4 17 M10 1.5 1
2038 VTE1-M10X60 60 6,4 17 M10 1.5 1
2039 VTE1-M10X70 70 6,4 17 M10 1.5 1
2040 VTE1-M10X80 80 6,4 17 M10 1.5 1
2041 VTE1-M10X100 100 6,4 17 M10 1.5 1
2042 VTE1-M12X16 16 7,5 19 M12 1.75 1
2043 VTE1-M12X20 20 7,5 19 M12 1.75 1
2044 VTE1-M12X30 30 7,5 19 M12 1.75 1
2045 VTE1-M12X40 40 7,5 19 M12 1.75 1
2046 VTE1-M12X50 50 7,5 19 M12 1.75 1
2047 VTE1-M12X60 60 7,5 19 M12 1.75 1
2048 VTE1-M12X70 70 7,5 19 M12 1.75 1
2049 VTE1-M12X80 80 7,5 19 M12 1.75 1
2050 VTE1-M12X90 90 7,5 19 M12 1.75 1
2051 VTE1-M12X100 100 7,5 19 M12 1.75 1
2052 VTE1-M16X16 16 10 24 M16 2.0 1
2053 VTE1-M16X20 20 10 24 M16 2.0 1
2054 VTE1-M16X30 30 10 24 M16 2.0 1
2055 VTE1-M16X40 40 10 24 M16 2.0 1
2056 VTE1-M16X50 50 10 24 M16 2.0 1
2057 VTE1-M16X60 60 10 24 M16 2.0 1
2058 VTE1-M16X80 80 10 24 M16 2.0 1
2059 VTE1-M16X100 100 10 24 M16 2.0 1
2060 VTE1-M18X50 50 11,5 27 M18 2.5 1
2061 VTE2-M5X50 50 3,5 34 0,8 M5 0.8 2
2062 VTE2-M6X60 60 4 10 10 M6 1.0 2
2063 VTE2-M6X80 80 4 15 10 M6 1.0 2
2064 VTE2-M6X100 100 4 60 10 M6 1.0 2
2066 VTE2-M8X80 80 5,3 20 13 M8 1.25 2
2067 VTE2-M8X85 85 5,3 50 13 M8 1.25 2
2068 VTE2-M8X100 100 5,3 50 13 M8 1.25 2
2070 VTE2-M8X125 125 5,3 75 13 M8 1.25 2
2071 VTE2-M8X125 125 5,5 75 13 M8 1.25 2
2072 VTE2-M10X40 40 6,4 8 17 M10 1.5 2
2073 VTE2-M10X60 60 6,4 10 17 M10 1.5 2
2074 VTE2-M10X70 70 6,4 10 17 M10 1.5 2
2075 VTE2-M10X80 80 6,4 20 17 M10 1.5 2
2076 VTE2-M10X125 125 6,4 65 17 M10 1.5 2
2078 VTE2-M10X150 150 6,4 90 17 M10 1.5 2
2080 VTE2-M12X40 40 10 10 19 M12 1.75 2
2081 VTE2-M12X60 60 10 10 19 M12 1.75 2
2082 VTE2-M12X70 70 10 20 19 M12 1.75 2
2083 VTE2-M12X80 80 10 30 19 M12 1.75 2
2084 VTE2-M12X125 125 10 90 19 M12 1.75 2
2085 VTE2-M16X50 50 10 12 24 M16 2.0 2
HEXAGONAL HEAD SCREWS

Searching for hexagonal head screws?

If you are looking for plastic slotted pan head, socket head, hexagonal head, thumb head or crossed pan head screws or if you are looking for miniatures then you are definitely on the right site because Panozzo has an almost endless array of all types of fasteners and fixings to meet the needs of all users.

The ability to rapidly manage the supplying of fasteners and fixings, thanks to an always well-stocked warehouse and to the continuous technological innovation for the management of customer orders, makes Panozzo a reference point for fastening systems which exclude the use of metal.

A strong point is our website www.panozzosrl.com, which is structured according to the use of products such hexagonal head screws and with the images of the plastic fasteners well in evidence.

The site www.panozzosrl.com allows customers and/or potential clients to easily and quickly find the miniatures of plastic it needs.

From the site www.panozzosrl.com, you can request free samples of hexagonal head screws, offers on plastic slotted pan head, socket head, hexagonal head, thumb head or crossed pan head screws and/or PDF catalog of fastening systems which exclude the use of metal.

Panozzo has than five thousand items of plastic molded of various materials (polyethylene, PVC, nylon 6.6, EPDM, silicone, etc.)

With ethical and logical technical and economic support, evaluation and advice on the type of miniatures which is most suited to the customer.

Utilized materials also of plastic such as nylon 6.6 and Teflon which are required fastening systems which exclude the use of metal.

Why utilized fasteners and fixings

Often, for various technical and safety requirements, there is the obligation to eliminate potential electrical conductors and then one must to use alternative materials such as plastic, which guarantees the same mechanical properties of metals but without having their negative characteristics.

The production of hexagonal head screws is made almost exclusively in PA 6.6. This material is a polyamide belonging to the family of the most popular thermoplastic nylon 6.6 with nomenclature, great for fastening systems which exclude the use of metal. For particular uses it can be assessed by the production of miniatures Teflon

It is possible to be connected in an appropriate manner between those elements of plastic, using plastic slotted pan head, socket head, hexagonal head, thumb head or crossed pan head screws that are not easily subject to wear, assuming you do not reach high temperatures which are higher than 100 ° C:, in this case that would cause significant deformation preventing them from fulfilling their main task properly. In this case you have to think about using other materials such as Teflon.

Our not metallic plastic slotted pan head, socket head, hexagonal head, thumb head or crossed pan head screws are lighter and absorbs the strong vibrations in the most opportune way without unscrewing, are difficult to break and thanks to their elasticity they are resistant to any kind of shock.

Compared to the metal version, plastic slotted pan head, socket head, hexagonal head, thumb head or crossed pan head screws offer undoubted advantages such as: less weight, insulation, non-corrosivity, high attenuation, high resistance to vibration and easier handling

There are many uses for hexagonal head screws in plastic of a vehicle: to create fastening systems which exclude the use of metal and they can withstand vibrations. In addition, the fasteners in plastic must be able to withstand atmospheric agents and also ensure the fastening of thin sheet metal.

Our flexible service offers the organization, advising or full management of order and/or purchase of screw in plastic based on customer needs.

Where to find fasteners and fixings

If you are looking plastic slotted pan head, socket head, hexagonal head, thumb head or crossed pan head screws , screw in nylon 6.6 to drive fasteners of plastic for the body or for the preparation of the vehicles you will definitely find all in the site category fasteners and fixings. When it comes to miniatures in plastic it is expected to be a major commodity for the repair of a car because it's not easy to find. Thanks to our careful attention to product quality, you will have screw of plastic both viable and efficient. Browse the category fasteners and fixings and find the fasteners in plastic for the body that you need most.

Panozzo can become your only point of reference for the purchase of nautical accessories of plastic regarding fastening systems which exclude the use of metal as the screw of plastic and fasteners in plastic.

With the fasteners in plastic of Panozzo, such as plastic slotted pan head, socket head, hexagonal head, thumb head or crossed pan head screws that allow rapidity and simplicity of the mounting of exhibitors for points of sale, customizable solutions are possible, in the form, in the shape and sizes, to best enhance the image and the communication of each customer.

So if you are searching for fastening systems which exclude the use of metal automotive or for the electronics industry or for the electrical industry, do not hesitate to ask for samples of our offers or screw in plastic.

The fasteners and fixings are in the car, on the shelves, in furniture, machinery, in the home fixtures, household appliances, computer and therefore almost anywhere you find fasteners in plastic

The screw in plastic, for example miniatures of plastic, is used especially in those cases in which the elements are subjected to strong corrosion for long periods, in which even hardened steel is unable to withstand. It also has good elastic properties that can provide adequate resistance to vibrations.
