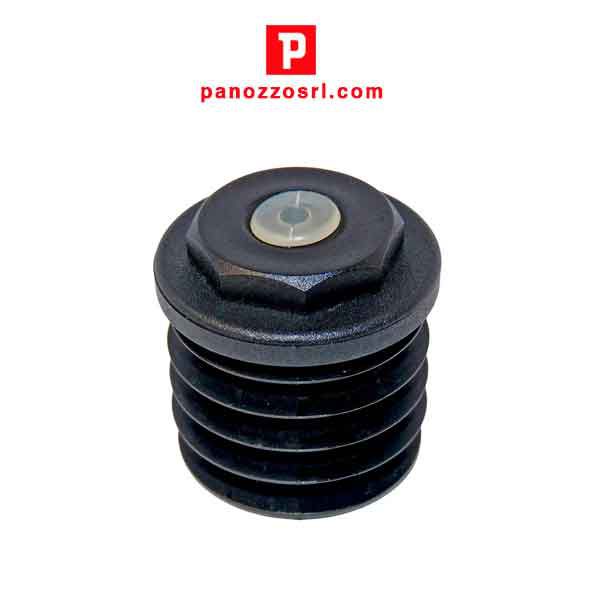

ADJUSTABLE FEETS FOR ROUND TUBES WITH SLIP STOPPER

MATERIAL
NYLON
COLOR
BLACK

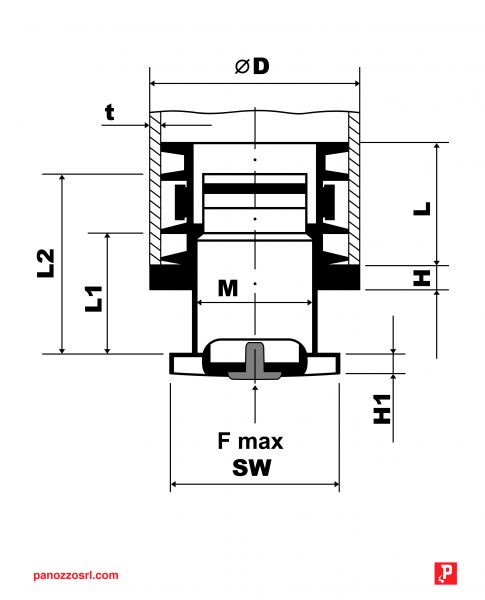

Technical design
SIZES
CODE D H H1 L L1 L2 T SW THREAD MAX (Kg)
4675 PRTA32X1,5-2 32 5 5 19,7 20 29,5 1,5-2 28 M22 300
4676 PRTA35X1,5-2 35 5 5 29,3 20 29,5 1,5-2 28 M22 300
4677 PRTA38X1,5-2 38 5 5 29,3 20 29,5 1,5-2 28 M22 300
4678 PRTA40X1,5-2 40 5 5 29,3 20 29,5 1,5-2 28 M22 300
4679 PRTA42X1,5-2 42 5 5 29,3 28 40,5 1,5-2 41 M30 300
4680 PRTA45X1,5-2 45 5 5 29,3 28 40,5 1,5-2 41 M30 300
4681 PRTA48X1,5-2 48 5 5 29,3 20 29,5 1,5-2 28 M22 300
4682 PRTA50X1,5-2 50 5 5 29,3 28 40,5 1,5-2 41 M30 300
4683 PRTA60X1,5-2 60 6 10 34,7 40,3 1,5-2 58 M42 X 2 300
4684 PRTA80X1,5-2 80 6 10 34,7 40,3 1,5-2 74 M56 X 2 300
